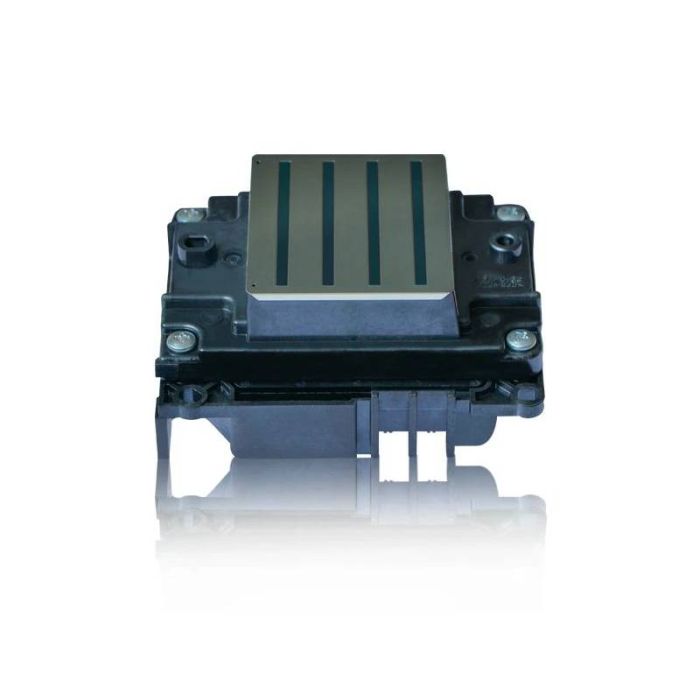

Epson I3200 A1 Printhead – Genuine OEM PrecisionCore Technology

The Genuine OEM Epson I3200‑A1 Printhead is engineered for exceptional image quality, high‑speed printing, and long‑term durability. Designed with Epson PrecisionCore™ Technology, this printhead delivers outstanding accuracy, smooth gradations, and consistent droplet placement—making it ideal for high‑performance aqueous ink applications.

Key Features & Benefits

PrecisionCore™ MEMS Technology

• High‑density, high‑precision nozzle configuration
• Produces perfectly round ink droplets for accurate, consistent placement
• Enables compact design with high‑speed and high‑quality output

Advanced Grey‑Scale Support

• Epson’s Variable Sized Droplet Technology (VSDT) allows precise droplet volume control
• Ensures smooth color transitions and detailed gradients
• Supports binary, 3‑level, and 4‑level grayscale printing

High Resolution Performance

• 1440 nozzles total (8 rows × 180 nozzles)
• Native resolution of 1440 DPI
• Smallest droplet size: 3.5 picoliters
• Ideal for sharp text, fine lines, and high‑definition images

Enhanced Durability

• Up to 20% improved accuracy and lifespan compared to previous Epson printhead models
• Built for reliability in demanding production environments

Epson I3200‑A1 Technical Specifications

• Product Name: Epson I3200‑A1
• Ink Type: Aqueous
• Dimensions (W × D × H): 2.72" × 2.33" × 1.4"
• Weight: 3 oz
• Total Nozzles: 3200
• Nozzle Pitch: 1/300 inch
• Nozzle Resolution:
• 300 npi per row
• 600 npi (2 rows)
• Maximum Ink Colors: 4 colors
• Effective Print Width: 1.33 inches (33.8 mm)

Droplet Ejection Performance

• Binary Mode: 6 pl at 43.2 kHz
• 3‑Level Grayscale: 6.3 & 12.3 pl at 21.6 kHz
• 4‑Level Grayscale: 3.8, 6.1 & 9.4 pl at 21.6 kHz
• Supported Ink Viscosity: 3–4 mPa

⚠ Note:
This product is Genuine OEM.
