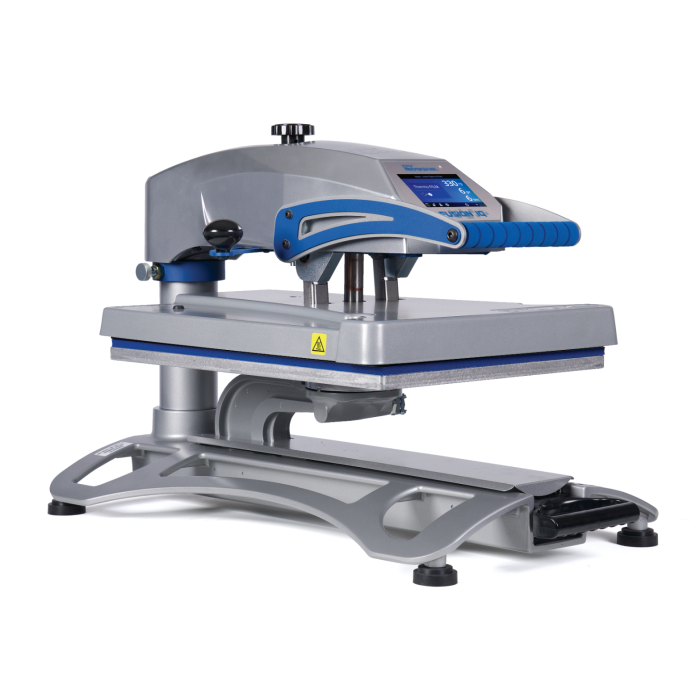

Hotronix Fusion IQ™ Heat Press – 16" × 20"

Special Price $2,850.00 Regular Price $3,150.00
In stock
SKU
HX20F IQ

Achieve Professional-Grade Transfers with Ease

Upgrade your garment printing workflow with the advanced Hotronix Fusion IQ™ Heat Press – 16" × 20". Renowned for its innovative design and precision, this heat press is the ideal choice for decorators focused on Direct-to-Film (DTF), Direct-to-Garment (DTG), Heat Transfer Vinyl (HTV), and Dye Sublimation applications.

Key Features & Benefits:

  • Large 16" × 20" Platen: Ideal for various apparel sizes and large-format transfers, ensuring flawless prints every time.

  • Fusion IQ™ Smart Technology: Cloud-connected digital platform provides real-time data, automated settings, and detailed analytics for improved operational efficiency.

  • Dual Functionality (Swing-Away and Draw): Offers maximum flexibility and accessibility, significantly enhancing safety and productivity.

  • Precision Digital Controls: Accurately set temperature, pressure, and timing parameters to guarantee perfect transfers consistently.

  • Exclusive Threadability™: Allows easy and efficient threading of garments onto the lower platen, reducing prep time and increasing throughput.

  • Interchangeable Platens: Adapt quickly to various project needs with optional interchangeable platens.


Perfect for Advanced Printing Methods:

  • Direct-to-Film (DTF) Transfers

  • Direct-to-Garment (DTG) Applications

  • Heat Transfer Vinyl (HTV)

  • Dye Sublimation


What's Included:

  • Hotronix Fusion IQ™ Heat Press

  • Detailed User Manual

  • Lifetime Technical Support from Hotronix


Elevate Your Printing Business

With industry-leading technology, the Hotronix Fusion IQ™ Heat Press ensures unmatched quality and reliability, designed specifically for high-volume and professional-level printing operations.

Order your Hotronix Fusion IQ™ Heat Press today from dtfstore.com and unlock the next level of printing excellence!

Specifications

Platen / Working Area
16" × 20" (406 mm × 508 mm) swing‑away or pull‑out (drawer) lower platen, fully threadable for front/back/side printing. ¾" (19 mm) thick, non‑stick coated cast‑aluminum upper platen for even heat.
Pressure & Capacity
Patented over‑center manual knob with live digital pressure scale (0 – 9) on the IQ™ touchscreen. Up to 1.25" (32 mm) between platens without accessories.
Temperature Range
32°F – 430°F (0°C – 221°C); factory calibration & on‑screen offset available
Controls & Interface
7 " high‑resolution IQ™ touch‑screen: unlimited presets, twin timers, multi‑language UI, Wi‑Fi cloud portal for job/usage analytics, auto on/off, self‑diagnostics.
Voltage/Phase/Current
120 V ~, 15 A, 1800 W (USA/Canada) • 240 V ~, 7.5 A, 1800 W (international) — dedicated circuit recommended
Dimensions
32" (W) × 18" (D) × 20" (H) (81 × 46 × 51 cm) 
Heat Press Weight
137 lbs (62 kg)
Crate Dimensions
37" × 25" × 24" (94 × 64 × 61 cm) • 150 lbs (68 kg)
Construction
Rigid cast‑aluminum chassis, powder‑coat finish, UL/ULC/CE/RoHS compliant; cast‑in tubular heater for tight ±2°F uniformity
Warranty
Heating element – Lifetime • Framework – 5 yrs • Circuit board – 2 yrs • Parts & labor – 1 yr
