DTFLINE V4 24 Inch Powder Application Machine | Professional DTF Shaker & Curing System

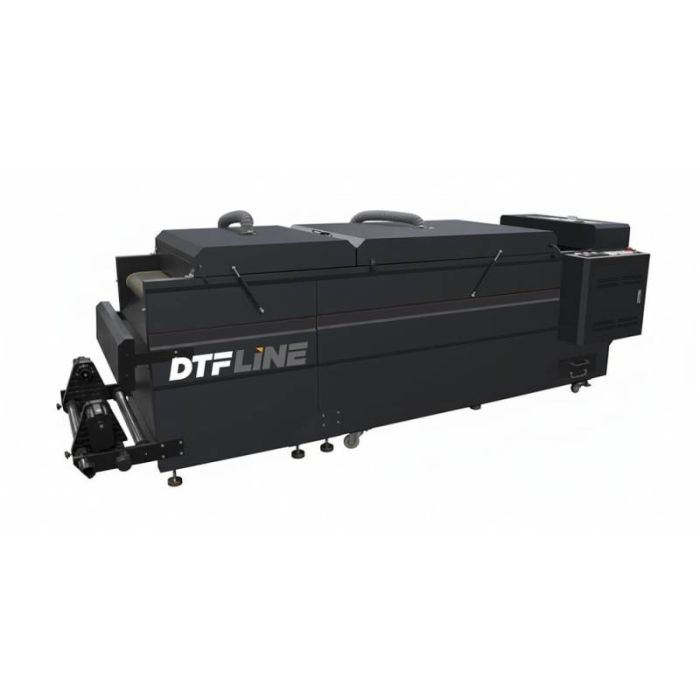

DTFLINE V4 Professional Powder Application Machine
Industrial-Grade DTF Shaker for Ultra High-Speed Roll-to-Roll Production
The DTFLINE V4 Powder Application Machine is a next-generation, industrial DTF shaker engineered for ultra-high-speed roll-to-roll Direct-to-Film printing. Designed specifically for four-, five-, and multi-printhead DTF printers, the V4 supports extreme production environments where throughput, consistency, and durability are critical.
Built for professional in-line operation, the DTFLINE V4 delivers uniform powder application, efficient curing, and reliable film handling at print speeds exceeding 200 sq. ft./hr, making it the ideal finishing system for large-format, high-output DTF printers.
Built for Multi-Printhead, High-Speed DTF Systems
Unlike entry-level or mid-range powder units, the DTFLINE V4 is purpose-built to keep pace with five or more printhead configurations, including advanced Epson I3200-based systems. Its integrated powder recovery system minimizes adhesive waste while maintaining consistent coverage across long production runs.
The extended curing tunnel ensures proper melting and bonding of adhesive powder, producing smooth, press-ready DTF film even at maximum operating speeds.
DTFLINE Shaker Comparison (24” Models)
|
Model |
Printer Configuration |
Max Speed |
|
DTFLINE 24” V2 |
1–2 printheads |
Up to 110 sq. ft./hr |
|
DTFLINE 24” V3 |
3–4 printheads |
Up to 200 sq. ft./hr |
|
DTFLINE 24” V4 |
4–5+ printheads |
200+ sq. ft./hr |
Key Features & Capabilities
- Supports DTF Roll Widths Up to 24” – Ideal for wide-format and gang-sheet printing
- Designed for 5+ Printhead Printers – Built for extreme production speeds
- Integrated Powder Recovery System – Reduces waste and improves consistency
- High-Capacity Curing Tunnel – Ensures even melting and adhesion at high throughput
- Universal Compatibility – Works with DTGPRO, Oric, Audley, HJD, Titan, ColDesi, All American / DTF Station, STS, Mimaki, Roland, and more
- Roll-to-Roll Workflow – Stable, continuous film transport for long runs
Technical Specifications
- Power Supply: 220V, 50/60Hz
- Power Consumption: 8800W
- Machine Dimensions: 188” (L) × 70” (W) × 82” (H)
- Crated Dimensions: 196” (L) × 72” (W) × 77” (H)
- Net Weight: 940 lbs
- Gross Weight: 975 lbs
- Printer Compatibility: Any roll-to-roll DTF printer up to 24” film width
- Supported Speed: Over 200 sq. ft./hr (ideal for 5 × I3200 printhead systems or larger)
Recommended Add‑Ons
Important Information
- Lead Times: Due to high demand, lead times may apply unless marked QuickShip. Orders are processed in the order received.
- Appearance: Equipment color may vary based on availability. Images are for reference only.
- Shipping: Contact us for expedited or custom freight options.
Safety & Operating Guidelines
Always operate the DTFLINE V4 in a well-ventilated environment and wear appropriate personal protective equipment (mask and gloves) when handling DTF powders and inks. A fume extractor is strongly recommended for safe operation.
For optimal performance and print consistency, maintain:
- Humidity: 55%–75%
- Temperature: 75°F–80°F
